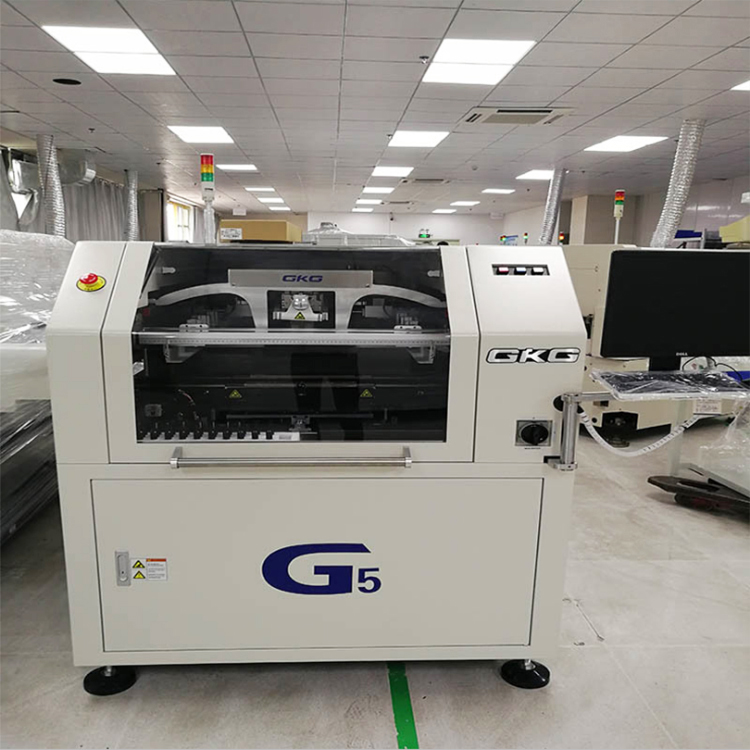

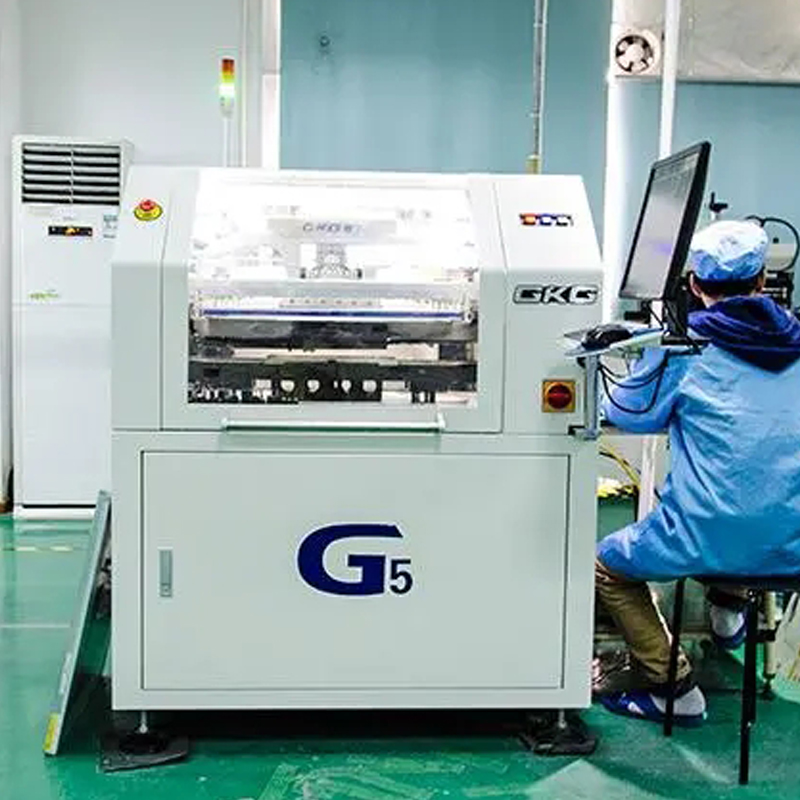

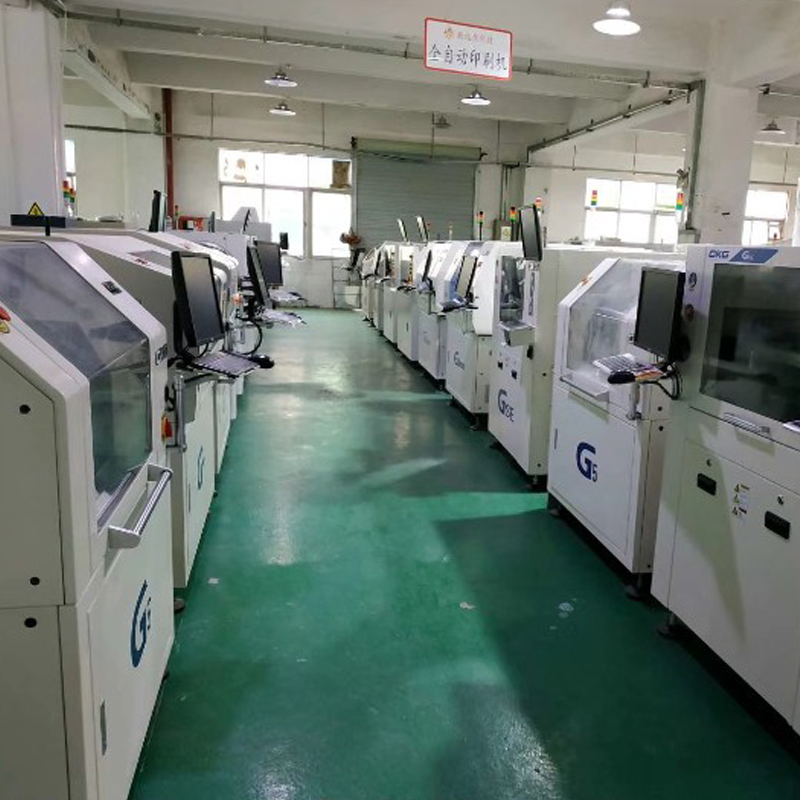

GKG G5 Automatic Printing Machine

Manufacturer	SD
Model	G5

1、GKG special adjustment jacking platform
Stable and easy to adjust, it can quickly adjust the pin jacking height of PVB with different thickness.

2、Image and optical system
Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (including the rugged Mark points), applicable for tin plating, coppering, gold plating, tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model, able to ensure high accuracy.

3、Cleaning System
GKG cleaning system equipped with three cleaning methods: dry cleaning，wet cleaning，vacuum.which can be combined to use It can also be cleaned by manual if customer do not need to use automatic cleaning to reduce the cleaning time and improve production efficiency.The newly wiping system ensures full contact with the stencil, increased vacuum suction can effectively eliminate the remaining paste in the mesh, which can achieve effective automatic cleaning function.
CCD part and cleaning system is separated when CCD working, CCD part independently move to reduce the servo motor load and
improve the machine speed and accuracy.

4、High adaptability steel mesh frame clamping system
Able to print all kinds of size screen frames,and quickly change models during production line.

5、Guide Rail positioning System
New pattern patented guide rail can detachable programmable flexible side clamp specific to FPC, PCB warpage, perform a unique clamping plate device.Through software programming can automatically stretch out and draw back unaffected PCB thickness.

6、Friendly Chinese/English operation interface
Using Windows XP/win7 operation interface with good man-machine dialogue function,and easy for operator quickly familiar with the operation especially when doing navigation effect of programming file.easy to switch Chinese/English interface, with operation log, fault record /fault self-diagnosis /fault analysis prompt/light alarm and other functions.

Automatic Printer

	Model	G5
Screen Frames	Min.Size(mm)	370*370mm
	Max.Size(mm)	737*737mm
	Thickness	20-40mm
PCB Size and Transportation	Min.Size(L*W mm)	50*50mm
	Max.Size(L*W mm)	400*340mm
	Thickness(mm)	0.4~6mm
	Transport Height	900±40mm
	Transport Speed	1500mm/s(MAX), Program Control
	Transport Way	One Stage
	Transport Direction	L-R / R-L / L-L / R-R
	Conveyor width adjustment	Auto
	I/Ov Interface	SMEMA
PCB Location	Support System	Magnetic Pin/Support Block/manual Up-down table
PCB Location	Clamping System	Patented over the top clamping/side clamping
Print Head	Two independent motorised print heads
Squeegee Pressure	0.5-10KG
Print Speed	6-200mm/sec
Print Mode	One/Twice
Squeegee Type	Rubber/steel squeegee blade (Angle 45°/55°/60°)
Cleaning System	Reinforced vacuum absorption,dry,wet,vacuum three modes
CCD FOV	10*8MM
Machine Specification	Operation System	Windows XP /Win7
	Repeat Position Accuracy	±0.01mm
	Printing Accuracy	±0.025mm
	Cycle Time	＜8 sec
	Air Supply	4~6 Kgf/cm²
	Power Supply	AC:220±10%, 50/60HZ，2.5KW
	Weight	1000Kg
	Single Size(LWH mm)	1140x1364x1404
	Control Method	PC Control
